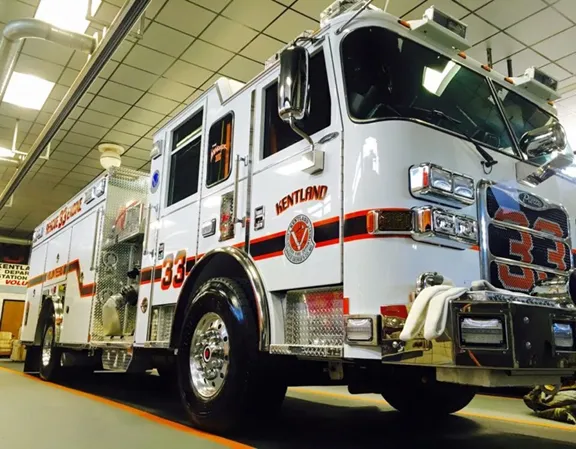

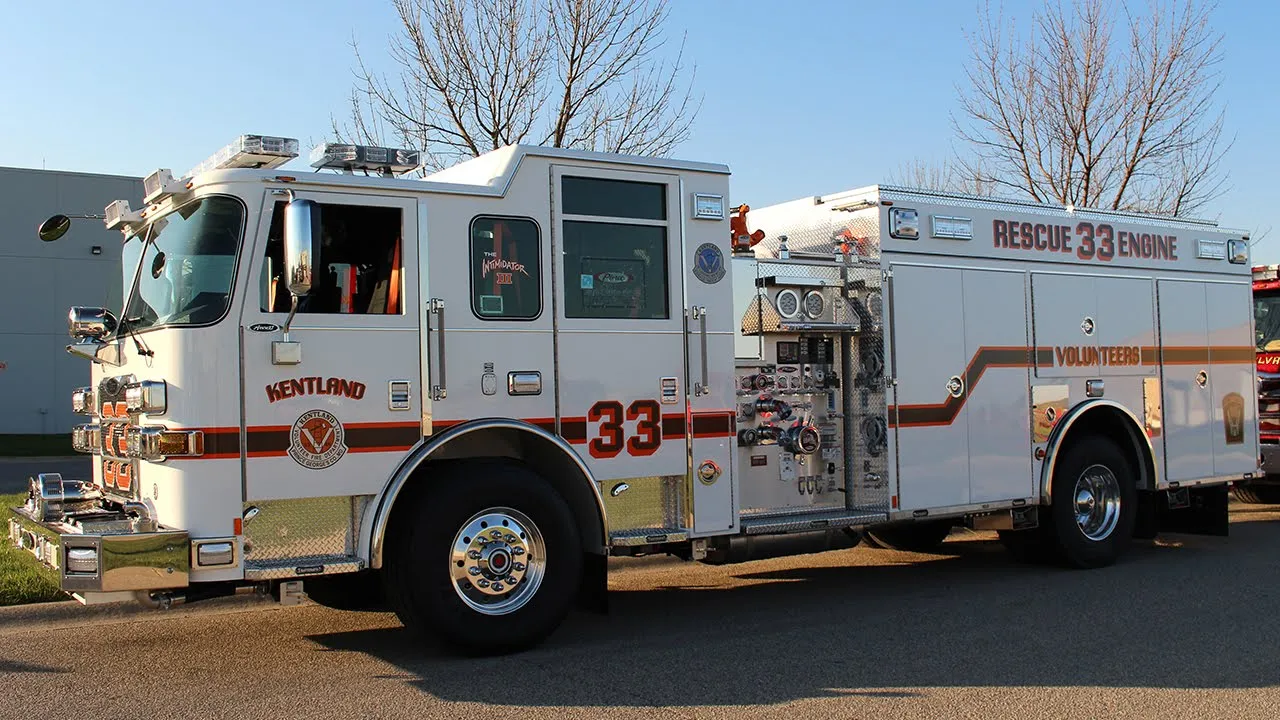

Unit Specs
Chassis
- Arrow XT chassis
- 67” cab with 10” raised roof
- Front Axle: Meritor MFS-20, 21,500 lb
- Rear Axle: Meritor RS30-185, 31,000 lb
- GVW Rating: 52.500 lb
- Frame Rails: 13.38”
- Engine: DDC DD13, 500 hp, 1650 torque
- Transmission: Allison EVS 4000
- Wheelbase: 205.5”
- Overall Height: 9’ – 8”
- Overall Length: 32’ – 11.75”
- 7-person cab seating capacity

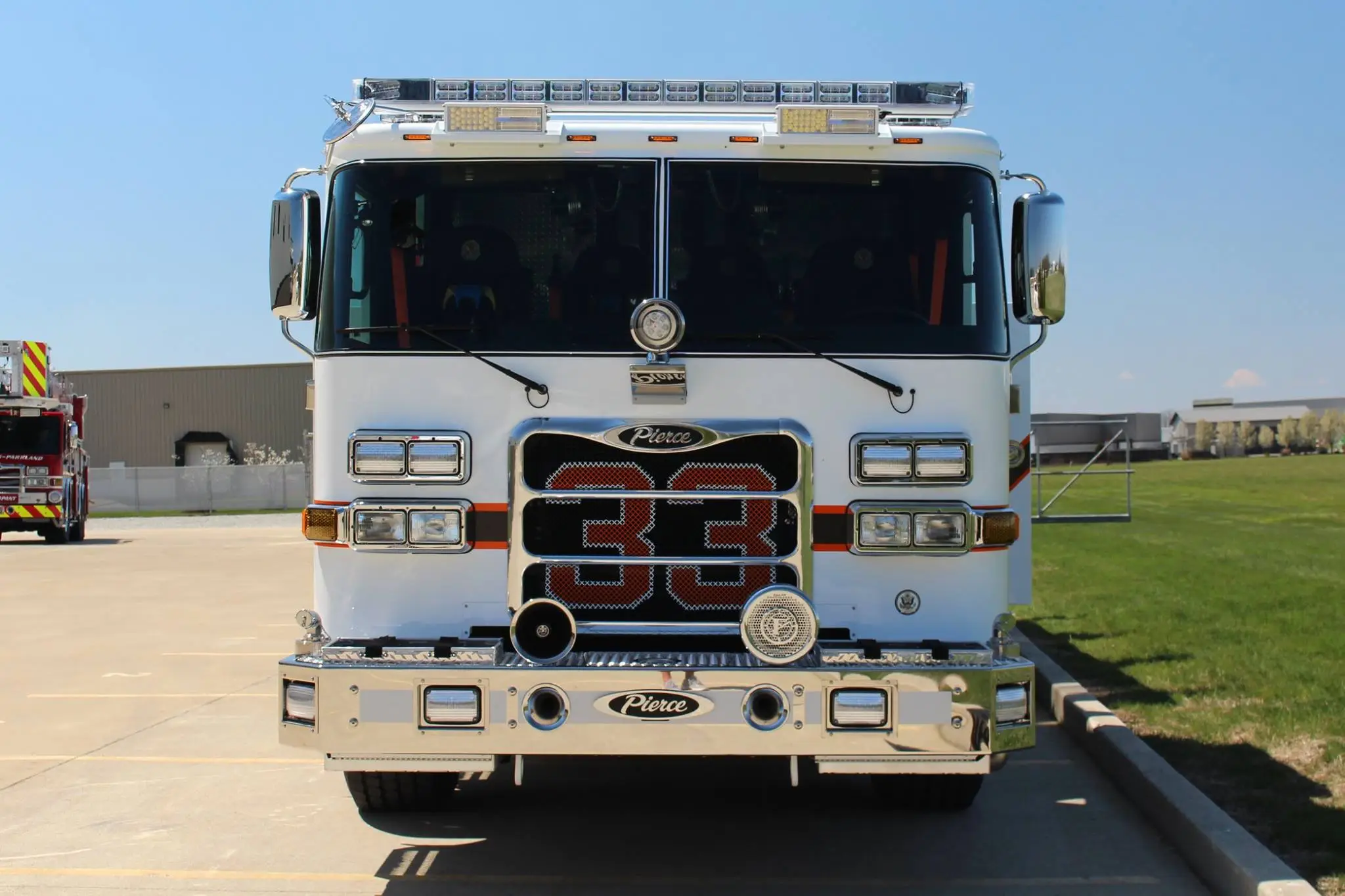

- Bumper: 19”
- Lift and tow package

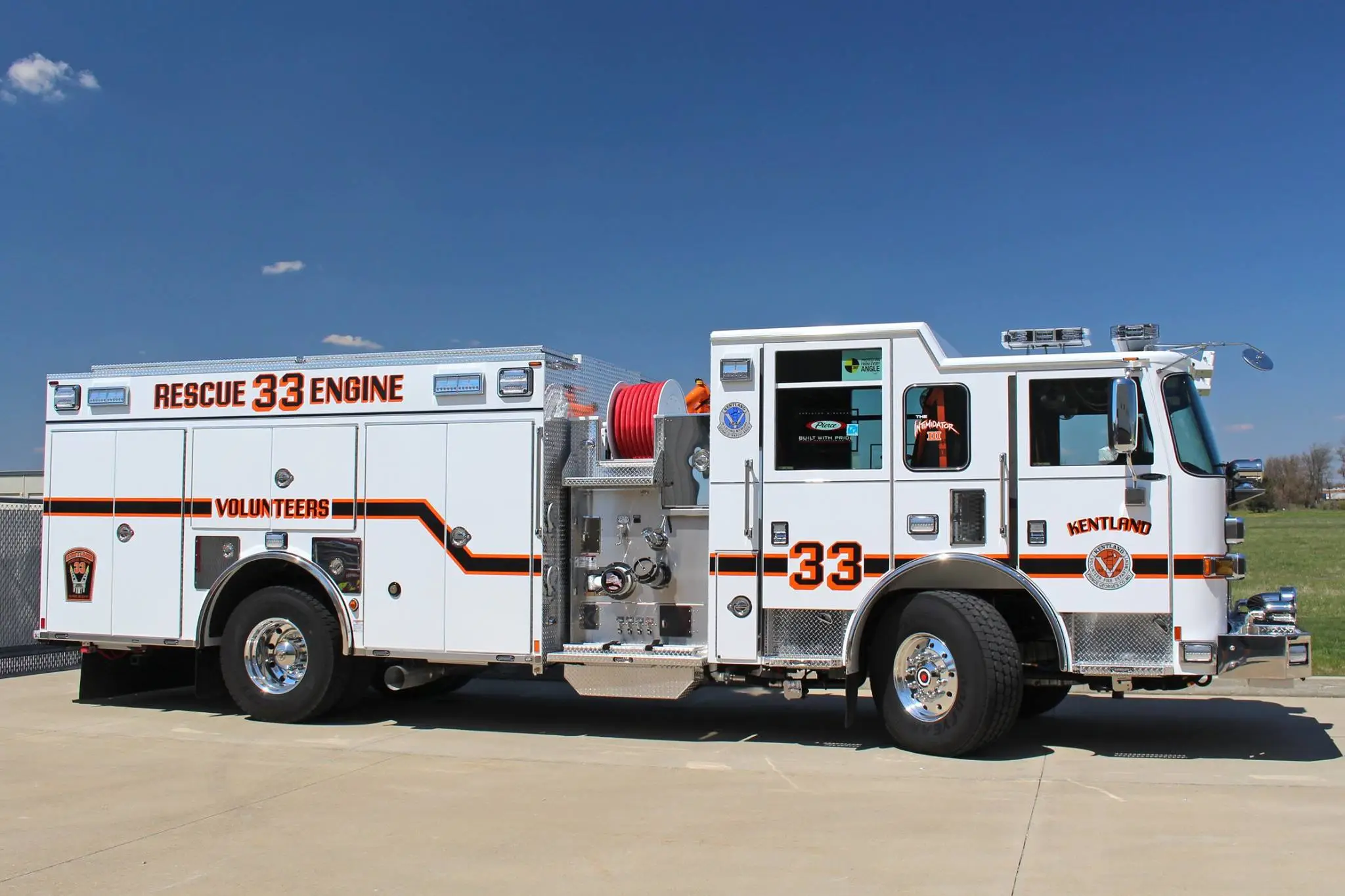

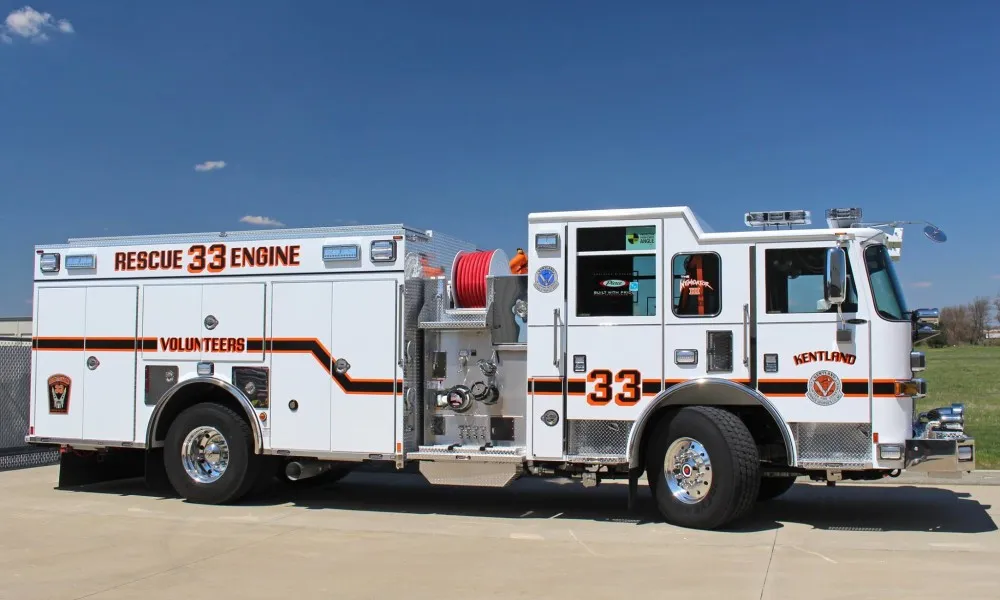

Pumper Body:
- Stainless steel body
- Lap doors
- Roof hatch compartment storage

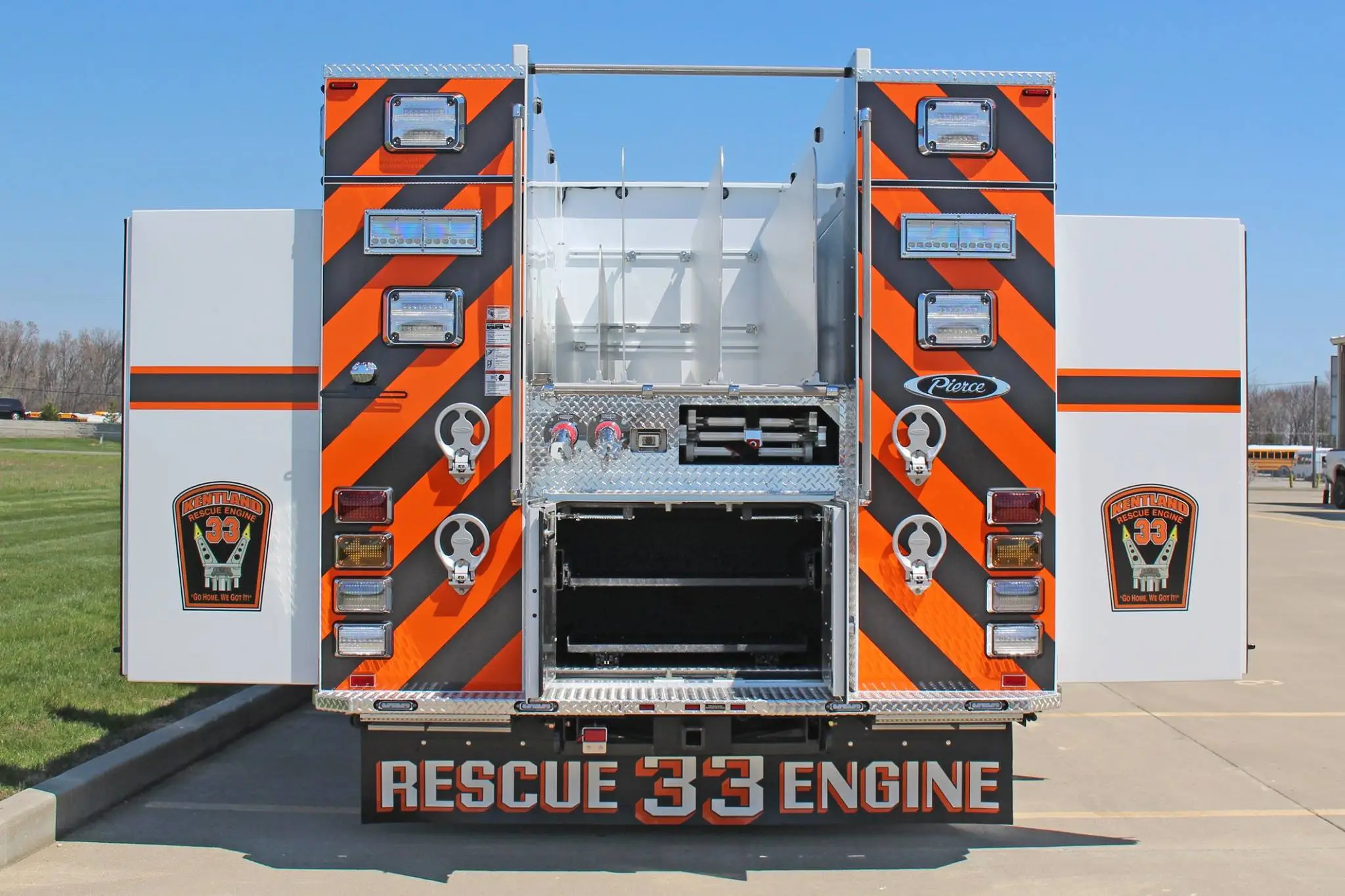

- Below hosebed, through tank ladder storage
- Fender panel air bottle storage
- Fender panel extinguisher storage
- Various adjustable shelves and slide out trays
- (5) Slide out toolboards
- Custom 5-drawer tool box
- Tank: 500 gallons

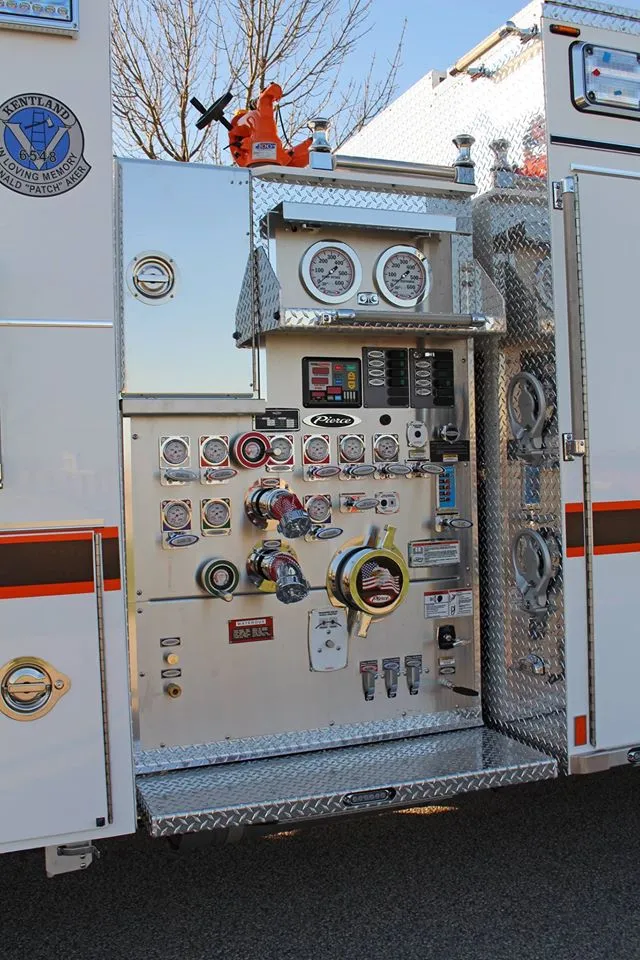

- Pump: Waterous 1500 gpm, two stage
- 45” Pumphouse
Operations Assignments
5 Man Rescue Crew
- Rescue Driver – Drive Safely, Set Up Tools
- Officer – Circle Check, Action Plan
- Barman – Run Primary Tool
- Canman – Backup Tool
- OVM – Stabilization, Cribbing
5 Man Engine Crew
- Engine Driver – Drive Safely, Pump
- Officer – Line Placement, Hydra Ram
- Lineman – Pull Attack Line
- Layout – Layout, Assist With Line
- Backup – Assist With Line, Irons
